CHILLERS & HEATERS

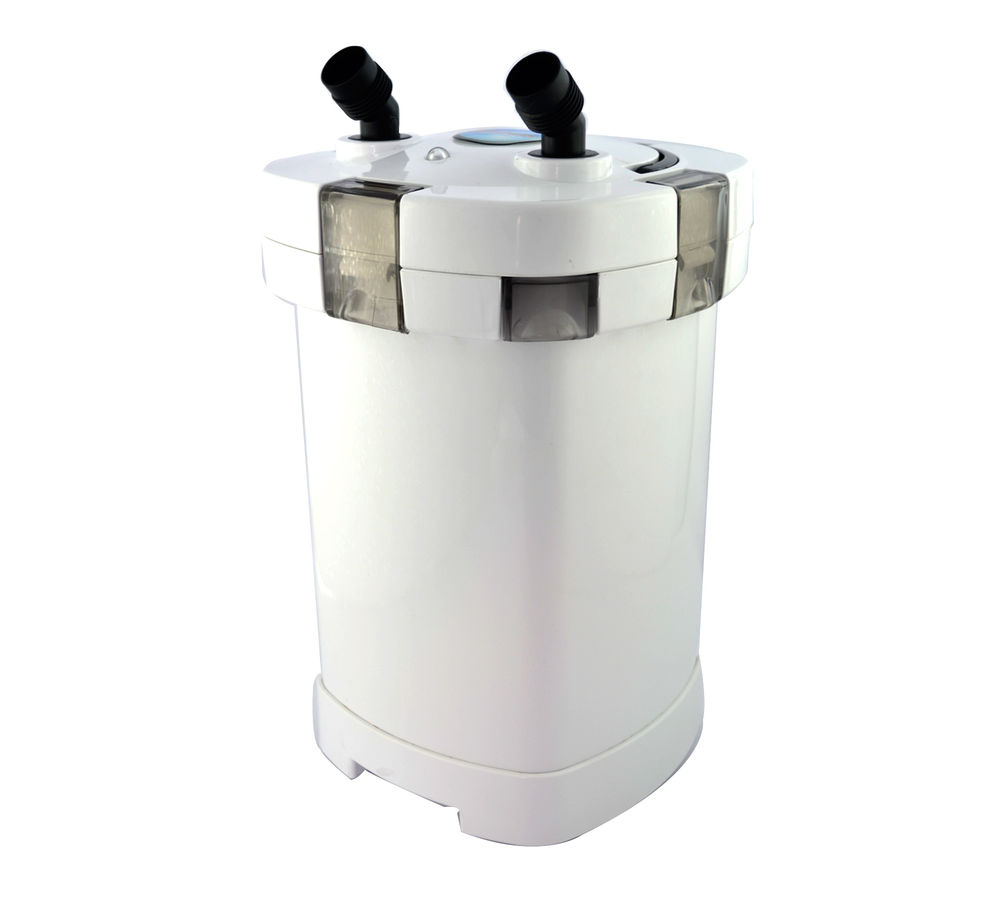

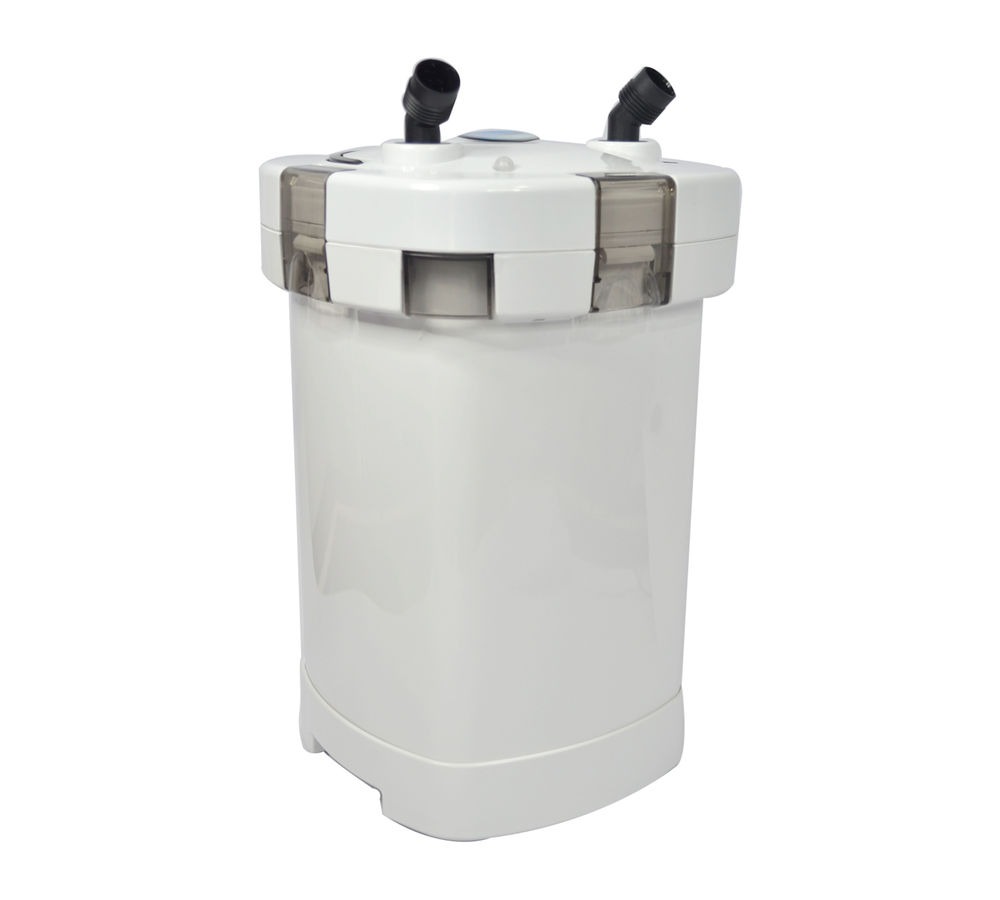

SunSun HW-504B External Filter with UV
₹ 5,000.00
Pull-up 4 clasps due to arrow’s direction the clasps depart from the cover
There are two handles on the cross of filter body, hold the handle’s bottom then pull up, filter cover and body departed

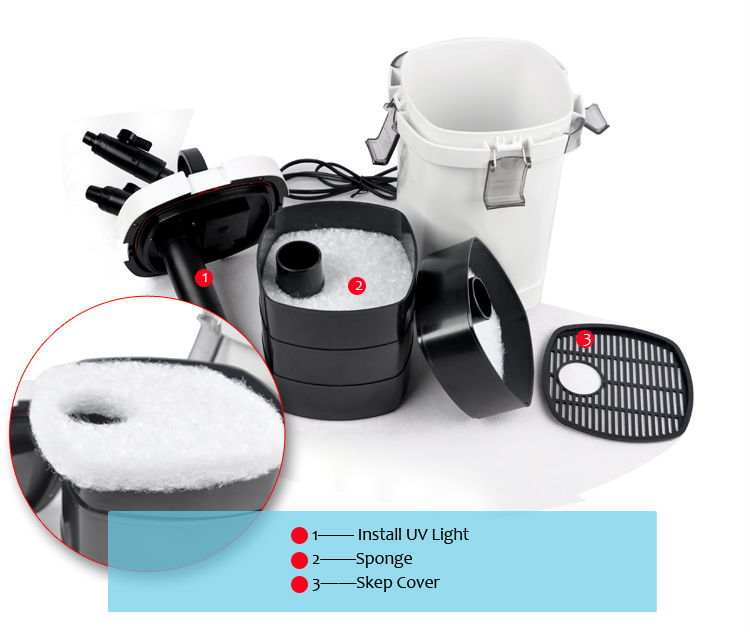

Take out the filter box, put in filter materials or bio-cottons due as you like
Put back the full filter box in turn, put on cover
Please pay attention, the inlet of filter box must be same direction with the ‘IN’ mark on the cover
Close and mark sure it is sealed well, and then put down 4 clasps
Connect 16 in/outlet adjuster on bend connector where there is marked “IN” screw down it
Connect 12 in/outlet adjuster on band connector above in/outlet adjuster where marked “OUT” then screw down
Attention: Before connect above in/outlet adjuster, please check if the O RING on the connector is well
Put the tube 16mm into 16 in/outlet adjuster and screw down, then put the tube 12mm into 12 in/outlet adjuster and screw
Please see the swift of in/outlet adjuster is on
You can decide the direction and height by yourself, then put tube 12mm into outlet bend connector and screw down
There has a jet connector outlet parts, if you don’t want scatter pipe, then jet can replaced
The UV germicidal lamp must be replaced more than 8000 hours, otherwise they will lose the bactricidal effect
When you replace the tube, please cut off the power, unscrew the screws with a screwdrive, remove the fixed plate, and then down to pull out the quartz tube, then you can remove the tube
Out of stock
Want to be notified when this product is back in stock?
Specification
Make: SUNSUN
Model: HW-504B
Voltage:110V/220V/240V
Power: 16W
UV Lamp Power: 5W
SunSun HW-504B External Filter with UV
