Chihiros Dosing Pump Kit

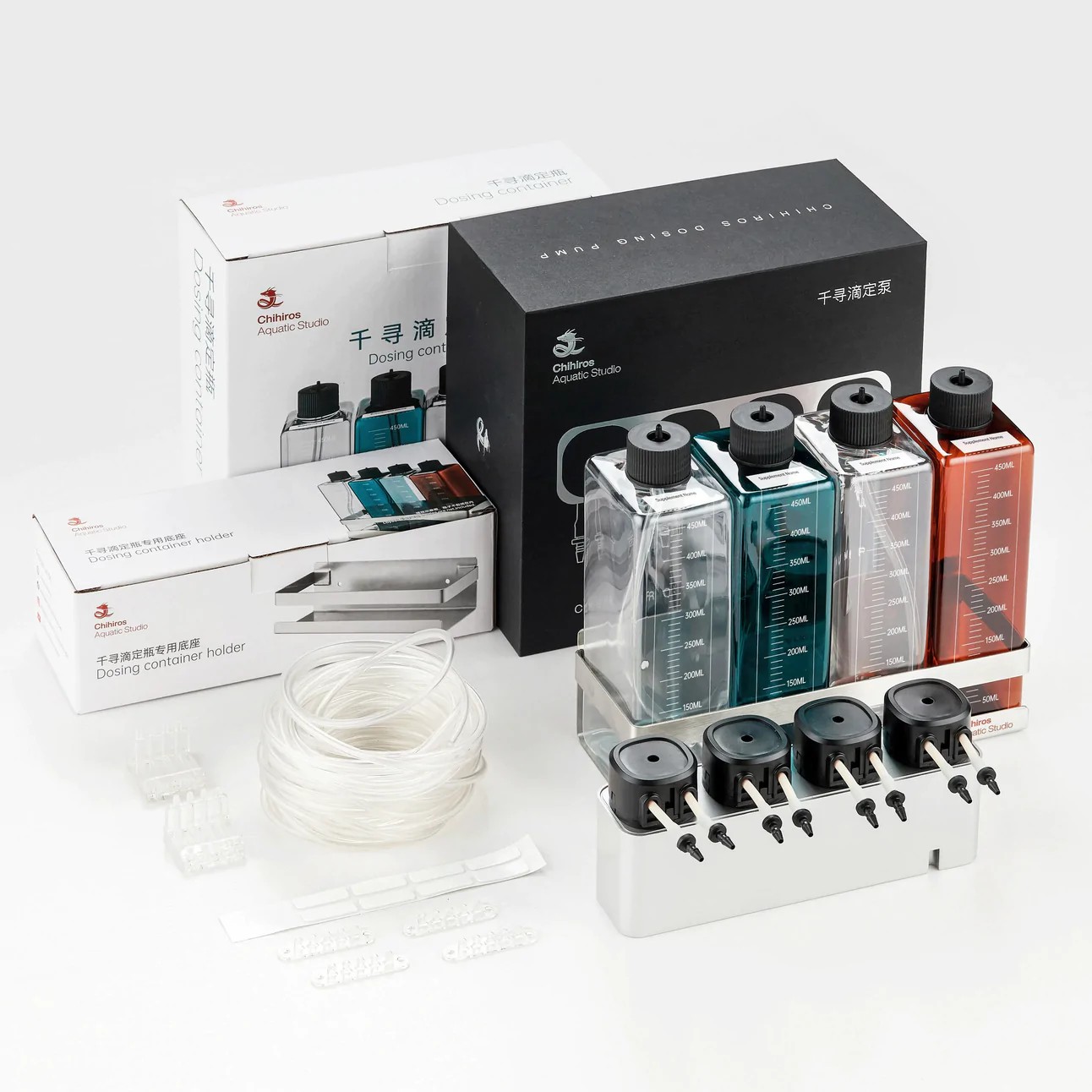

Kit Includes

• 4 Head Dosing Pump System
• Chihiros Dosing Container (4 Bottles)
• Chihiros Dosing Container Holder
• Chihiros Tube Holder X ( incl. Dosing Tube)

The world’s first professional freshwater aquascape dosing system, also suitable for marine saltwater tank.

Dosing Tube Holder of Chihiros Dosing Pump, is specially designed for aquatic tanks. The width is only 3cm, and the transparent color can be well hidden. This accessory includes 10 meters 2mm/4mm tube, 2pcs 4 heads tube holder and 4pcs tube organizer.

The Chihiros Dosing Pump is part of a small system from Chihiros to automatically supply freshwater aquariums with sufficient nutrients. A good supply of nutrients is necessary for all aquatic plants in an aquarium to thrive vigorously and healthily. For this reason, an automatic dosing pump is the ideal tool to ensure a constant supply.

For optimal control of the fertilizations quantity, the dosing pump can be controlled with the Chihiros APP. Daily fertilizations can be carried out per head in doses of 0,2 ml up to 999,9 ml in 0,1 ml steps. Here, 0,2 ml is the smallest dose that can be regulated to deliver fertilizer.

In case of a power failure the settings are saved on the unit via an optional battery (CR2032 button battery/not included). There is also the function “Compensation of missed doses”. This means that in the event of a failure, missed doses for one day (from 0:00 o’clock) are subsequently completely supplied. Another function is the “Supplement Volume Monitor” setting, which displays the consumption and the remaining days (This feature will not take effect until the battery is installed).

The small system can be easily attached to a flat surface near the pool. With the Chihiros dosing pump, up to four different fertilisers can be added to the pool. Chihiros is producing 4 Dosing Bottles and a fitting Metal Holder separately. To make the pumping system complete, Chihiros can also supply a practical Acrylic Holder incl. Dosing Tube.

Specifications of Chihiros Dosing Pump Kit

Number of dosing Heads: 4
Dose flow> 50ml/min
BPT lifetime ≥1000H
Dimensions: 17.7 x 5.4 x 4.2cm(7.0” x 2.2” x 1.7”)
Operating Temperature:5 to 45° C
Relative Humidity: 15~85%RH
Supply voltage: 100-240V 50/60Hz
Operating Voltage: DC 12V
Chihiros Dosing Container (4 Bottles)
Chihiros Dosing Container Holder
Chihiros Tube Holder X  (incl. Dosing Tube)

Chihiros Dosing container and holder
Different colors distinguish different fertilizers, and the metal bracket is beautiful, making your base cabinet neater.

We offer 4 bottles as a set, put your fertilizers into those different colors bottles, our dosing have one feature which is The “Supplement Volume Monitor” automatically deducts the amount of supplement dosed (scheduled and manual) from the last updated volume of supplement in the container. MY CHIHIROS app shows the number of days left in the container that can be used for dosing based on the current schedule. By default, the Supplement Volume Monitor will notify you three days before your supplement runs out.

Chihiros Dosing tube holder
Original patented design, more delicate and beautiful.
Transparent color can be better hidden.
One-piece molding design, stronger and safer.
Transparent tube organizer to keep your tank as clean as new.
